GIS స్విచ్ గేర్

● XGN15-12 type GIS Product Features

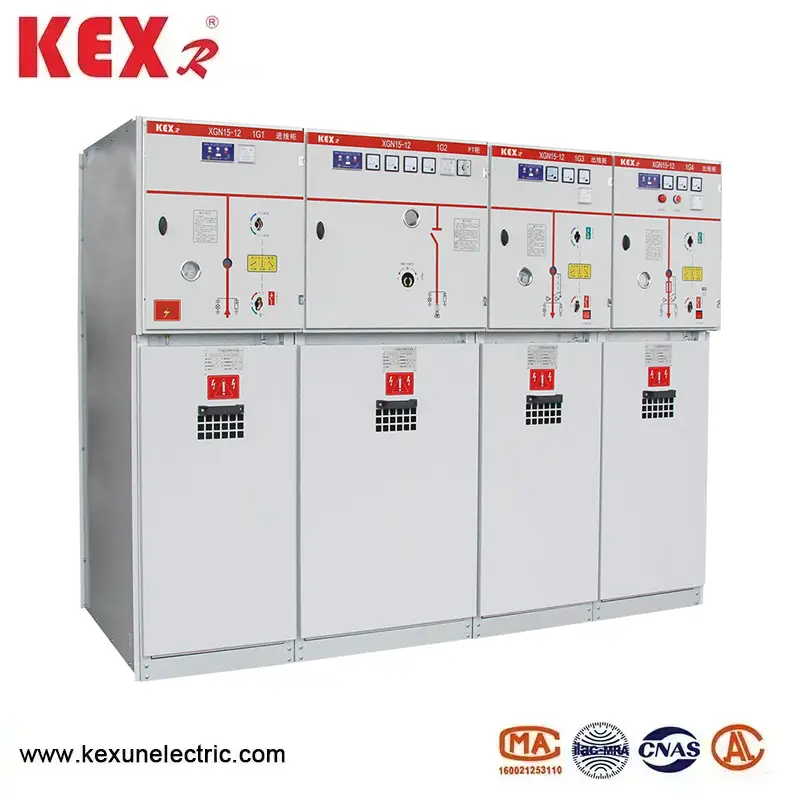

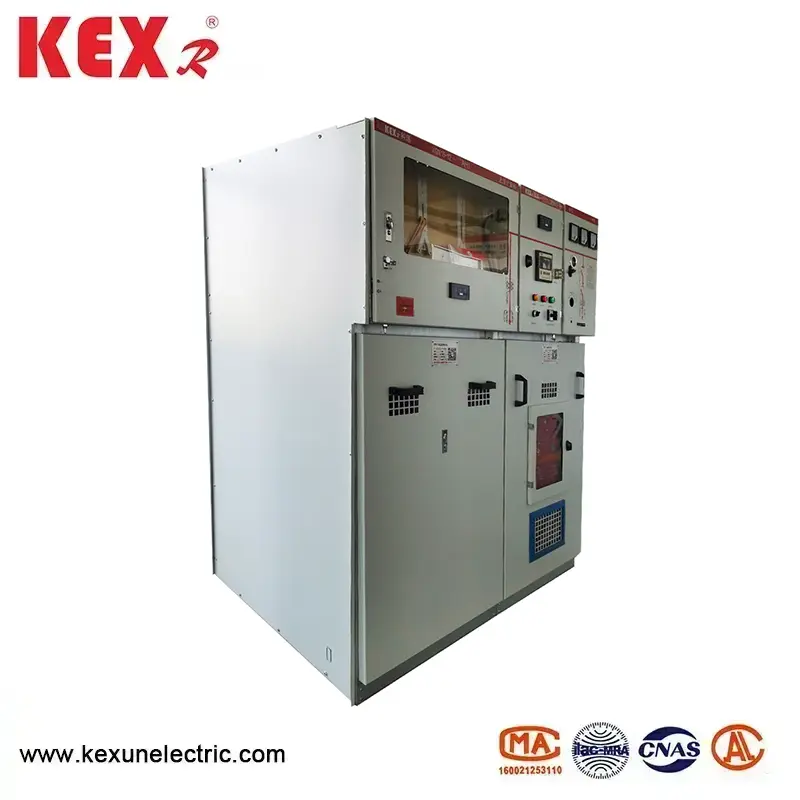

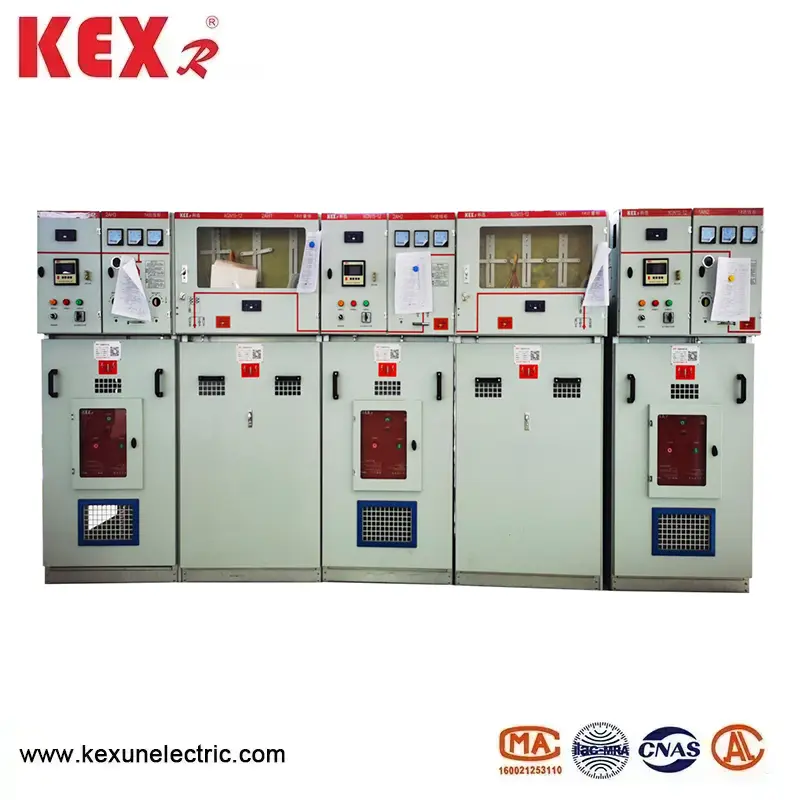

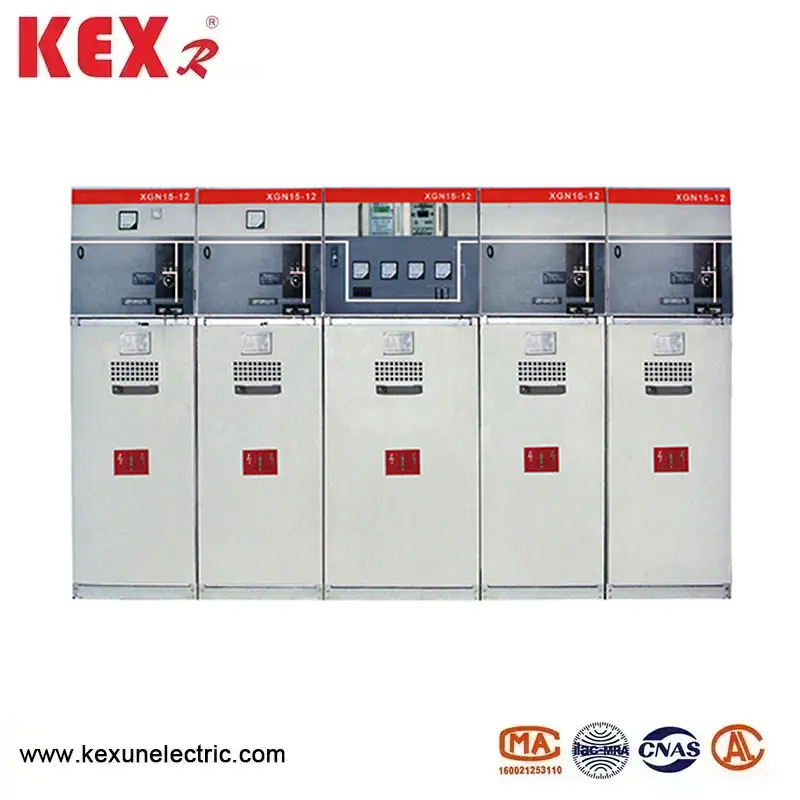

XGN15-12 GIS Switchgear is a new generation of metal-enclosed switchgear with sulfur hexafluoride switch as the main switch and air insulation in the whole cabinet, which is suitable for distribution automation. It has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation, and can provide satisfactory technical solutions for various applications and different user requirements.

● Using Conditons of XGN15-12 type GIS

◆ Altitude ≤ 1000 m. (If have special requirements, please indicate when ordering)

◆ Ambient temperature: -25℃~+40℃

◆ The average daily relative humidity shall not exceed 95%; The average monthly relative humidity does not exceed 90%;

◆ Seismic capacity: 8 degrees;

◆ No violent vibration and impact, and places with fire, chemical corrosion and explosion hazards.

● XGN15-12 type GIS  meets belows Standards

·IEC298        ·IEC265        ·IECL29        ·IEC694

·IEC420        ·IEC56          ·IEC529        ·IEC932

·GB3804       ·GB3906        ·GB11022

● Technical parameters and dimension of XGN15-12 GIS
